In high-pressure piping systems, selecting the correct fittings is crucial for performance and safety. Stainless steel socket weld fittings are favored in industries like oil and gas due to their strength and corrosion resistance. Understanding the dimensions of these fittings is essential for proper alignment and leak-free operation. This article provides a concise overview of stainless steel socket weld fittings dimensions, including standards and reference charts.

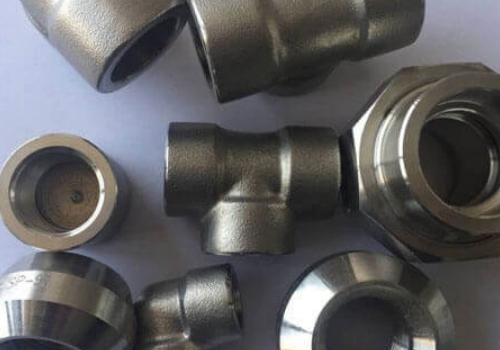

Socket weld fittings are forged for small-bore, high-pressure systems, allowing a pipe to fit into a recessed area and then be welded. Common types include:
· Elbows (45° and 90°): Change pipe direction.
· Tees: Branch a pipeline.
· Couplings: Join two pipes.
· Caps: Close pipe ends.
· Crosses: Four-way connections.
· Reducers: Connect pipes of different sizes. These follow standardized dimensions defined by ASME B16.11 to ensure consistency.
Accurate dimensions are vital as they affect performance and safety. Incorrect dimensions can cause:
· Misalignment and weak joints
· Pressure drops or leaks
· System failures due to incorrect wall thickness Standards like ASME B16.11 and MSS SP-79 specify dimensions such as bore diameter and wall thickness.
Here's a reference chart of standard dimensions for stainless steel fittings according to ASME B16.11.
| Fitting Type | Nominal Pipe Size (NPS) | Socket Bore Diameter (B) | Socket Depth (J) | Outside Diameter (OD) | Length (L) |
|---|---|---|---|---|---|
| Elbow 90° | 1/2” | 21.7 mm | 10 mm | 33.4 mm | 28 mm |
| Elbow 90° | 1” | 33.4 mm | 13 mm | 48.3 mm | 38 mm |
| Tee | 1/2” | 21.7 mm | 10 mm | 33.4 mm | 38 mm |
| Tee | 1” | 33.4 mm | 13 mm | 48.3 mm | 51 mm |
| Coupling | 1/2” | 21.7 mm | 10 mm | 33.4 mm | 30 mm |
| Coupling | 1” | 33.4 mm | 13 mm | 48.3 mm | 38 mm |
| Cap | 1/2” | 21.7 mm | 10 mm | 33.4 mm | 25 mm |
| Cap | 1” | 33.4 mm | 13 mm | 48.3 mm | 32 mm |
| Note: Verify dimensions with manufacturer data. |
To ensure accuracy, follow these steps:
1.Identify the fitting type.
2. Measure the socket bore (B).
3. Measure the socket depth (J).
4. Measure the outside diameter (OD).
5. Check the overall length (L).

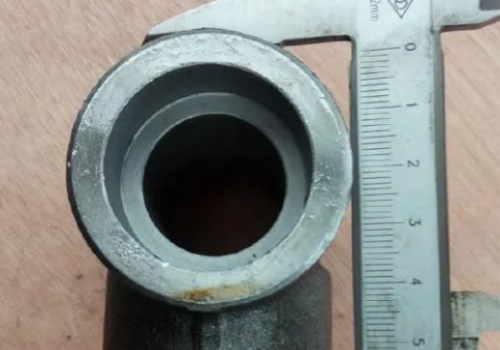

6. Confirm wall thickness and pressure rating. Use tools like calipers and pipe gauges for precision. Measuring Socket Weld Fittings Image 2: Illustration showing the measurement of socket weld fittings using calipers and gauges.
Stainless steel socket weld fittings must conform to standards such as:
· ASME B16.11: Dimensions and tolerances.
· ASTM A182, MSS SP-79 / SP-83, BS 3799: Material specifications and additional guidelines.
These fittings are ideal for:
· Oil & Gas Pipelines: Managing high-pressure flows.
· Chemical Plants: Handling corrosive substances.
· Power Plants: Withstanding high temperatures.
· Marine Industry: Resisting saltwater corrosion.
· Pharmaceuticals: Hygienic systems.
Consider these factors:
· Pipe size and schedule
· Pressure rating (Class 3000, 6000, 9000)
· Material grade (e.g., SS304, SS316)
· Dimensional standard
· End connections
Stainless steel socket weld fittings offer:
· High structural strength
· Excellent corrosion resistance
· Easy alignment
Understanding stainless steel socket weld fittings dimensions is vital for effective piping design and maintenance. By ensuring proper fitting selection, you can maintain system integrity and performance.
