What Is the Best Way to Seal Stainless Steel Pipe Threads?

Sealing stainless steel pipe threads can be a daunting task due to the risk of galling, a common issue where the threads seize or bind together. This guide will provide a comprehensive solution to ensure a leak-proof and effective seal for stainless steel pipes.

Understanding Galling in Stainless Steel Threads

Galling is caused by cold welding of the high points on the metal surface when threads are tightened. This issue is particularly prevalent with stainless steel due to its hardness and oxide film disruption during threading. To avoid the seizing of threads, proper sealing techniques are crucial.

Best Practices for Sealing Stainless Steel Threads

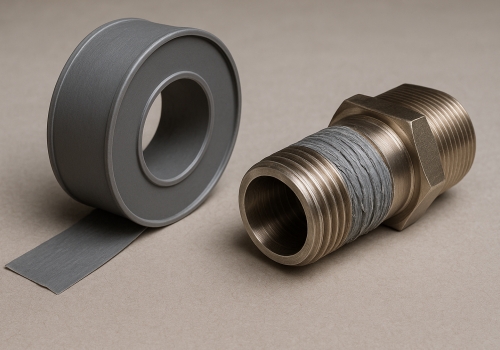

1.Use of Specialty PTFE Tape

· Employ Gray Stainless Steel PTFE Thread Seal Tape, which contains a nickel pigment suitable for stainless steel. This tape prevents galling and ensures a secure seal.

· Instructions for Use:

Start with a ½" wide tape, applying it on the first thread without extending past the end.

Wrap in the opposite direction of the threading motion, maintaining tension to allow the tape to mold into the threads.

For effectiveness, three revolutions of 3.5 or 4.0 mil tape are recommended. Thinner tapes may require more wraps.

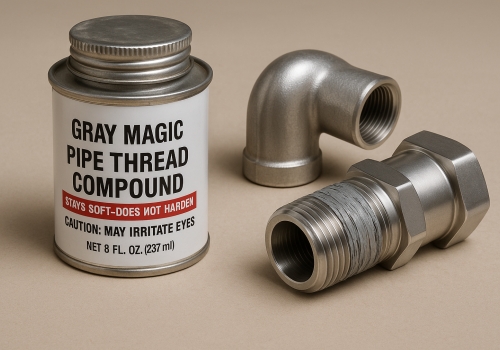

2. Application of Gray Magic Pipe Thread Compound

· This non-seizing compound enhances the sealing of all metal and plastic, including challenging stainless steel threads.

· Instructions for Use:

Clean threads of any dirt, oil, or debris.

Stir the compound well and apply liberally to male threads.

Proceed with joint assembly in a normal fashion.

Combining Techniques for Optimal Results

For the most reliable seal, use both PTFE tape and Gray Magic Thread Compound together. This dual approach is especially necessary for larger diameter pipes (4" and up) to prevent leaks comprehensively.

Comparison Table: PTFE Tape vs. Thread Compound

Conclusion

The best way to seal stainless steel pipe threads is by using a combination of Gray PTFE Thread Seal Tape and Gray Magic Pipe Thread Compound. This method effectively minimizes galling risks and ensures a durable, leak-proof connection. By following these steps, you can achieve a smooth transition into working with stainless steel products and avoid common frustrations associated with thread sealing.
