Standard：ASTM A182
ASTM A182: The standard for alloy and stainless threaded flanges. Common alloy grades: F5, F9, F11, F22, F91; Stainless steel grades: F304, 304/, F316, F316L.
Size: ½” (15 NB) to 48″ (1200NB)
Type: Threaded
Pressure ratings: 150#, 300#, 600#, 900#, 1500#, 2500#
Materials: Stainless Steel:
304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 904L, DUPLEX 2205 / SUPER DUPLEX 2507
Standards: SANSI B16.15, ANSI B16.47, MSS SP-44, API6A, API 17D, Manufacturer Standard etc.

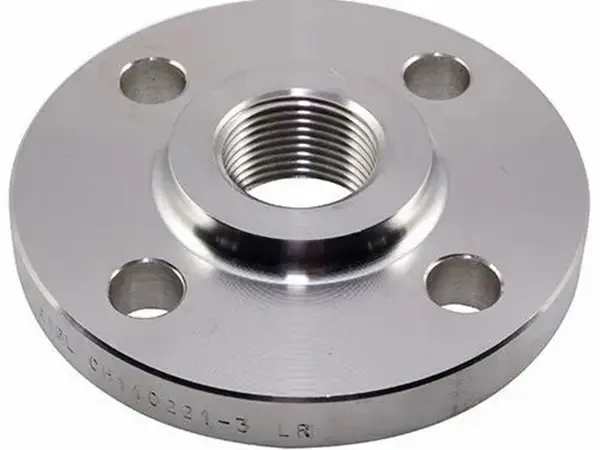

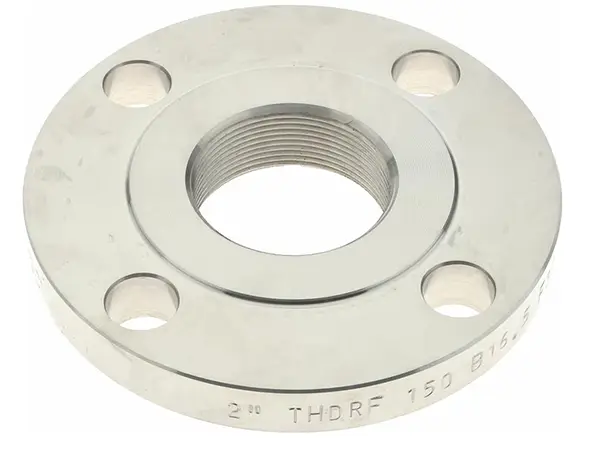

Stainless Steel Threaded Flange is connecting with pipe without welding. It is similar to slip on flange or a socket weld flange, fitted with a tapered thread (screw) inside the flange bore that is mounted on the pipe with corresponding external threads. In some cases a seal weld also applied in conjunction with threaded pipe flange.
Though threaded pipe flange is available in different dimensions, threaded fittings mostly is used in small diameters pipeline. (Below 4 inch normally.)
On the other hand, it is not compatible with a pipe system in thin wall thickness, since there is no space for doing the threading.

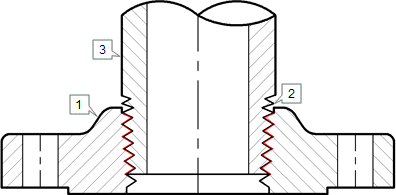

1.Threaded flange 2.Thread 3.Pipe or Fitting
|
Class |
Flat Face |
Raised Face |
Ring Type Joint |
|
ANSI 150 |
THD Flange ANSI 150 FF (in) |
THD Flange ANSI 150 RF (in) |
THD Flange ANSI 150 RTJ (in) |
|
ANSI 300 |
THD Flange ANSI 300 FF (in) |
THD Flange ANSI 300 RF (in) |
THD Flange ANSI 300 RTJ (in) |
|
ANSI 400 |
THD Flange ANSI 400 FF (in) |
THD Flange ANSI 400 RF (in) |
THD Flange ANSI 400 RTJ (in) |
|
ANSI 600 |
THD Flange ANSI 600 FF (in) |
THD Flange ANSI 600 RF (in) |
THD Flange ANSI 600 RTJ (in) |
|
ANSI 900 |
THD Flange ANSI 900 FF (in) |
THD Flange ANSI 900 RF (in) |
THD Flange ANSI 900 RTJ (in) |
|
ANSI 1500 |
THD Flange ANSI 1500 FF (in) |
THD Flange ANSI 1500 RF (in) |
THD Flange ANSI 1500 RTJ (in) |
|
ANSI 2500 |
THD Flange ANSI 2500 FF (in) |
THD Flange ANSI 2500 RF (in) |
THD Flange ANSI 2500 RTJ (in) |
The datasheets we have on this site are shown below. For simplicity sake, only datasheets that adhere to B16.5 are shown. ASME B16.5 covers flange dimensions from ½” to 24”. For sizes larger than this, please visit our flange datasheets page.
