Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales

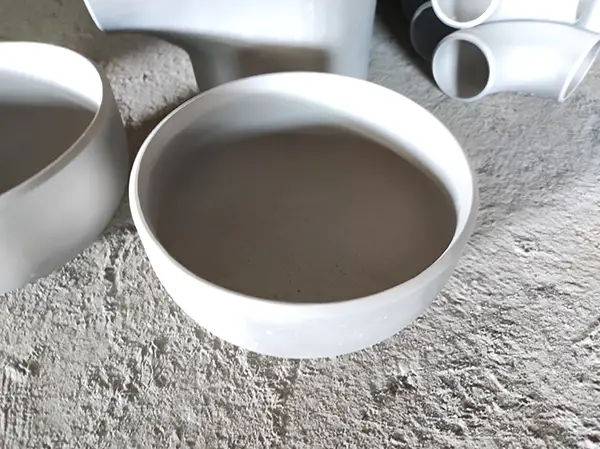

Stainless End Caps are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.
End cap is commonly made from the one steel plate, so it should be seamless. The pipe end caps are available in various shapes, like the hemispherical, oval, round etc.
Surface treatment
Transparent oil, rust-proof black oil or hot galvanized.
Special design available All the production process are made according to ISO9001:2000 strictly.
Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.
Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.
|

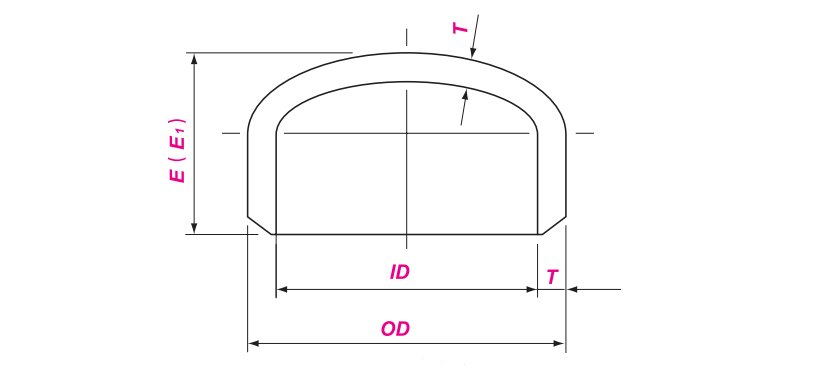

DN |
NPS |
OD |
E |
E1 |
|
15 |
1/2 |
21.3 |
25 |
25 |
|
20 |
3/4 |
26.7 |
25 |
25 |
|
25 |
1 |
33.4 |
38 |
38 |
|
32 |
1 1/4 |
42.2 |
38 |
38 |
|
40 |
1 1/2 |
48.3 |
38 |
38 |
|
50 |
2 |
60.3 |
38 |
44 |
|
65 |
2 1/2 |
73 |
38 |
51 |
|
80 |
3 |
88.9 |
51 |
64 |
|
90 |
3 1/2 |
101.6 |
64 |
76 |
|
100 |
4 |
114.3 |
64 |
76 |
|
125 |
5 |
141.3 |
76 |
89 |
|
150 |
6 |
168.3 |
89 |
102 |
|
200 |
8 |
219.1 |
102 |
127 |
|
250 |
10 |
273 |
127 |
152 |
|
300 |
12 |
323.9 |
152 |
178 |
|
350 |
14 |
355.6 |
165 |
191 |
|
400 |
16 |
406.4 |
178 |
203 |
|
450 |
18 |
457 |
203 |
229 |
|
500 |
20 |
508 |
229 |
254 |
|
550 |
22 |
558.8 |
254 |
254 |
|
600 |
24 |
609.6 |
267 |
305 |
|
650 |
26 |
660.4 |
267 |
– |
|
700 |
28 |
711.2 |
267 |
– |
|
750 |
30 |
762 |
267 |
– |
|
800 |
32 |
812.8 |
267 |
– |
|
850 |
34 |
863.6 |
267 |
– |
|
900 |
36 |
914.4 |
267 |
– |
|
950 |
38 |
965.2 |
305 |
– |
|
1000 |
40 |
1016 |
305 |
– |
|
1050 |
42 |
1066.8 |
305 |
– |
|
1100 |
44 |
1117.8 |
343 |
– |
|
1150 |
46 |
1168.4 |
343 |
– |
|
1200 |
48 |
1219.2 |
343 |
– |
|

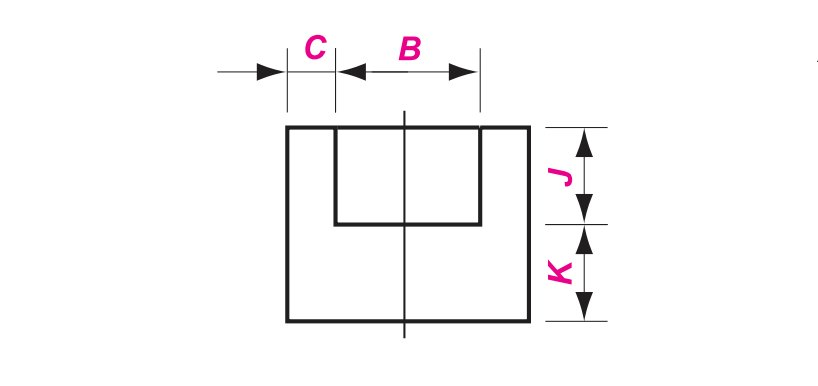

DN |
NPS |
B |
C |
J |
K |
|||||||
|
3000 |
6000 |
9000 |
3000 |
6000 |
9000 |
|||||||
|
ave |
min |
ave |
min |
ave |
min |
|||||||
|
6 |
1/8 |
10.9 |
3.18 |
3.18 |
3.96 |
3.43 |
|
|
9.5 |
4.8 |
6.4 |
|
|
8 |
1/4 |
14.3 |
3.78 |
3.3 |
4.6 |
4.01 |
|
|
9.5 |
4.8 |
6.4 |
|
|
10 |
3/8 |
17.7 |
4.01 |
3.5 |
5.03 |
4.37 |
|
|
9.5 |
4.8 |
6.4 |
|
|
15 |
1/2 |
21.9 |
4.67 |
4.09 |
5.97 |
5.18 |
9.53 |
8.18 |
9.5 |
6.4 |
7.9 |
11.2 |
|
20 |
3/4 |
27.3 |
4.9 |
4.27 |
6.96 |
6.04 |
9.78 |
8.56 |
12.5 |
6.4 |
7.9 |
12.7 |
|
25 |
1 |
34 |
5.69 |
4.98 |
7.92 |
6.93 |
11.38 |
9.96 |
12.5 |
9.6 |
11.2 |
14.2 |
|
32 |
1 1/4 |
42.8 |
6.07 |
5.28 |
7.92 |
6.93 |
12.14 |
10.62 |
12.5 |
9.6 |
11.2 |
14.2 |
|
40 |
1 1/2 |
48.9 |
6.35 |
5.54 |
8.92 |
7.8 |
12.7 |
11.12 |
12.5 |
11.2 |
12.7 |
15.7 |
|
50 |
2 |
61.2 |
6.93 |
6.04 |
10.92 |
9.5 |
13.84 |
12.12 |
16 |
12.7 |
15.7 |
19 |
|
65 |
2 1/2 |
73.9 |
8.76 |
7.62 |
|
|
|
|
16 |
15.7 |
19 |
|
|
80 |
3 |
89.9 |
9.52 |
8.3 |
|
|
|
|
16 |
19 |
22.4 |
|
|
100 |
4 |
115.5 |
10.69 |
9.35 |
|
|
|
|
19 |
22.4 |
28.4 |
|
|

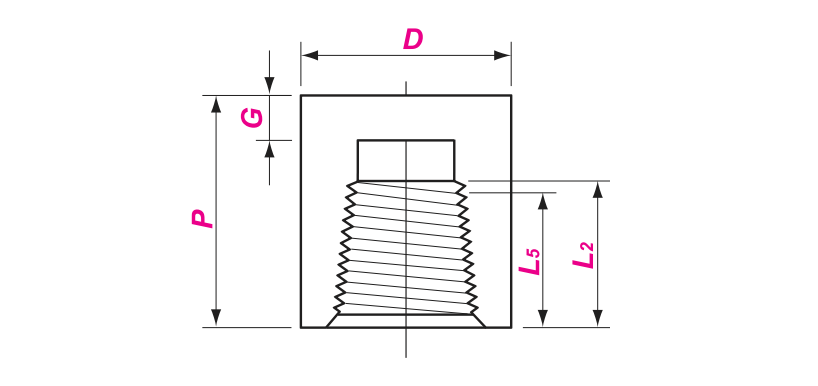

DN |
NPS |
P |
D |
G |
L5 |
L2 |
|||
|
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
||||
|
6 |
1/8 |
19 |
– |
16 |
22 |
4.8 |
– |
6.4 |
6.7 |
|
8 |
1/4 |
25 |
27 |
19 |
25 |
4.8 |
6.4 |
8.1 |
10.2 |
|
10 |
3/8 |
25 |
27 |
22 |
32 |
4.8 |
6.4 |
9.1 |
10.4 |
|
15 |
1/2 |
32 |
33 |
28 |
38 |
6.4 |
7.9 |
10.9 |
13.6 |
|
20 |
3/4 |
37 |
38 |
35 |
44 |
6.4 |
7.9 |
12.7 |
13.9 |
|
25 |
1 |
41 |
43 |
44 |
57 |
9.7 |
11.2 |
14.7 |
17.3 |
|
32 |
1 1/4 |
44 |
46 |
57 |
64 |
9.7 |
11.2 |
17 |
18 |
|
40 |
1 1/2 |
44 |
48 |
64 |
76 |
11.2 |
12.7 |
17.8 |
18.4 |
|
50 |
2 |
48 |
51 |
76 |
92 |
12.7 |
15.7 |
19 |
19.2 |
|
65 |
2 1/2 |
60 |
64 |
92 |
108 |
15.7 |
19 |
23.6 |
28.9 |
|
80 |
3 |
65 |
68 |
108 |
127 |
19 |
22.4 |
25.9 |
30.5 |
|
100 |
4 |
68 |
75 |
140 |
159 |
22.4 |
28.4 |
27.7 |
33 |
