Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
Standards:
ASTM A182–Specification for Forged or Rolled Alloy Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High Temperature Service
Material:
Stainless Steel: Steel ASTM A182 F Gr.304, 304L, 304H, 309, 310, 316, 316L, 316Ti, 317L, 321, 347, 347H, 904L
Alloy Steel:ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel:ASTM A182, ASME SA 182 UNS S31803, UNS S32205,UNS S32750, UNS S32760, UNS S32790
High Nickel Alloy:ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Sizes: 1/2'' to 24'', Customized up to 48''
Thickness: Schedule 10(S) to SCH 160
Pressure Ratings: Class 150 to 2500
Face Type: RF, RTJ

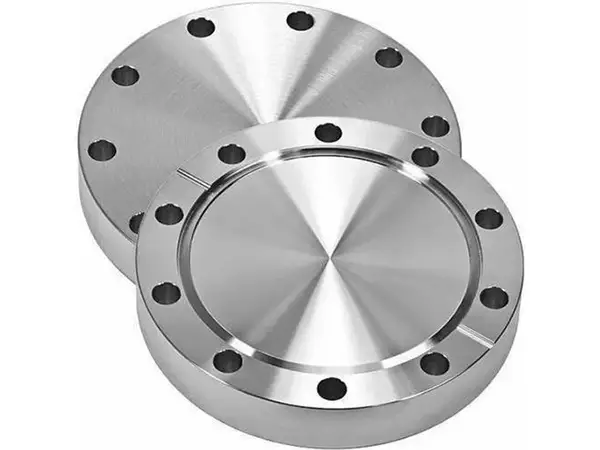

Stainless steel blind flange is like a flange cover, also called blind disk or flanged pipe plug. Blind flange has no holes in the centre, for to seal the pipe opening. So it's function is the same as the pipe plug or the pipe cap. The difference is blind flange is a detachable equipment, easy to replace or do maintenance.
Centerway steel co.,ltd can supplyStainless Steel Blind Flanges are mostly used to seal the end or opening of a pipe, which is why they come without a bore. This comes in handy for inspection and pressure tests, as it allows quick access to the pipe. We offer ANSI B16.5 Blind Flanges to the high h pressure application industries in numerous thread types and hub requirements as well as in hard-to-find metals categories like Monel, Hastelloy, Titanium, Inconel, etc.

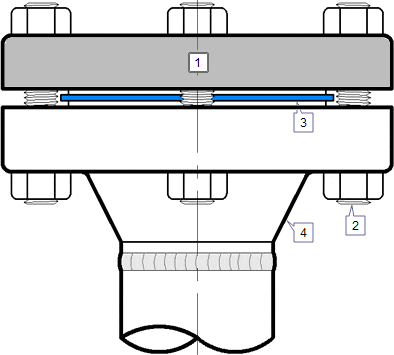

1. Blind flange 2. Stud Bolt 3. Gasket 4. Other flange
Dimensions Standard
Dimensions: ANSI/ASME B16.5, B16.28, MSS-SP-43.
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|
AS4087 |
PN14 |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C |
95 |
67 |
4 |
13 |
14 |
|
Table D |
95 |
67 |
4 |
13 |
14 |
|
|
Table E |
95 |
67 |
4 |
13 |
14 |
|
|
Table F |
95 |
67 |
4 |
13 |
14 |
|
|
Table H |
114 |
83 |
4 |
16 |
17 |
|
|
Table J |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 |
ANSI 150 |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 |
80 |
55 |
4 |
M10 |
11 |
|
PN10 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 |
95 |
65 |
4 |
M12 |
14 |
ASTM A182 Stainless Steel Spectacle Blind Flanges. Austenitic Steel Long Weld Neck Flange, OD 2 1/2" Class 150 ASME B16.5 ASME SA182 Stainless Steel Forged Flanges.
Equivalent Material
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
SS 304 |
1.4301 |
S30400 |
SUS 304 |
304S31 |
08Х18Н10 |
Z7CN18‐09 |
X5CrNi18-10 |
|
SS 304L |
1.4306 / 1.4307 |
S30403 |
SUS 304L |
3304S11 |
03Х18Н11 |
Z3CN18‐10 |
X2CrNi18-9 / X2CrNi19-11 |
|
SS 304H |
1.4301 |
S30409 |
– |
– |
– |
– |
– |
|
SS 310 |
1.4841 |
S31000 |
SUS 310 |
310S24 |
20Ch25N20S2 |
– |
X15CrNi25-20 |
|
SS 310S |
1.4845 |
S31008 |
SUS 310S |
310S16 |
20Ch23N18 |
– |
X8CrNi25-21 |
|
SS 316 |
1.4401 / 1.4436 |
S31600 |
SUS 316 |
316S31 / 316S33 |
– |
Z7CND17‐11‐02 |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
|
SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
|
SS 316Ti |
1.4571 |
S31635 |
SUS 316Ti |
320S31 |
08Ch17N13M2T |
Z6CNDT17‐123 |
X6CrNiMoTi17-12-2 |
|
SS 317 |
1.4449 |
S31700 |
SUS 317 |
– |
– |
– |
– |
|
SS 317L |
1.4438 |
S31703 |
SUS 317L |
– |
– |
– |
X2CrNiMo18-15-4 |
|
SS 321 |
1.4541 |
S32100 |
SUS 321 |
– |
– |
– |
X6CrNiTi18-10 |
|
SS 321H |
1.4878 |
S32109 |
SUS 321H |
– |
– |
– |
X12CrNiTi18-9 |
|
SS 347 |
1.4550 |
S34700 |
SUS 347 |
– |
08Ch18N12B |
– |
X6CrNiNb18-10 |
|
SS 410 |
1.4006 |
S41000 |
SUS 410 |
410S21 |
– |
– |
X12Cr13 |
|
SS 446 |
1.4762 |
S44600 |
– |
– |
– |
– |
– |
|
SS 904L |
1.4539 |
N08904 |
SUS 904L |
904S13 |
STS 317J5 |
Z2 NCDU 25-20 |
X1NiCrMoCu25-20-5 |
