Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
ASTM A358: American Society for Testing and Materials

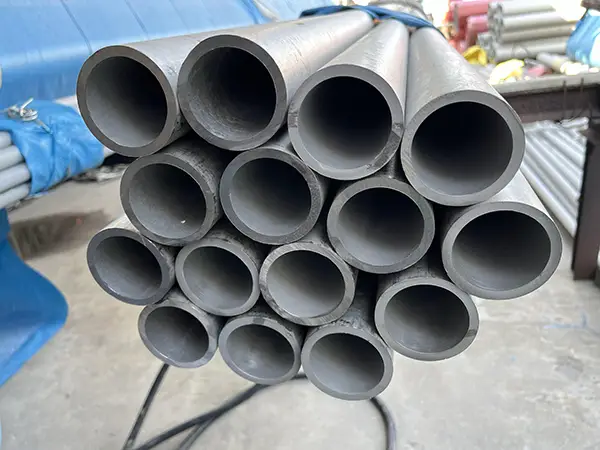

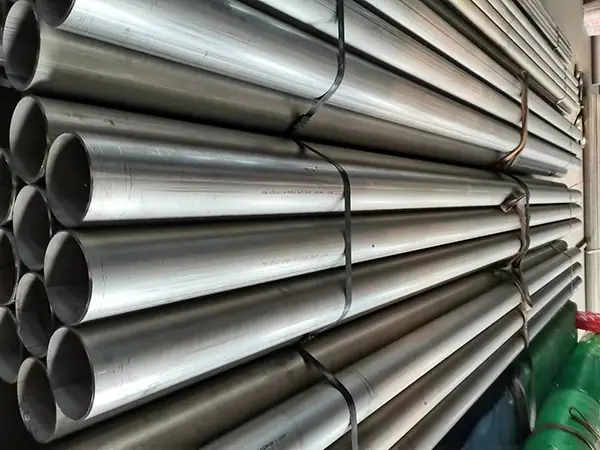

Eletric-Fushion-Welded Austenitic Chromium-Nickel Stainless Steel Pipe For High-Temperature Service and General Applications
Application: Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.
|
ASTM A358 Chemical Composition |
||||||||||
|
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
N |
Cu |
|
TP304 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
18.0-20.0 |
8.0-10.5 |
- |
0.1 |
- |
|
TP304L |
0.03 |
2 |
0.045 |
0.03 |
0.75 |
18.0-20.0 |
8.0-12.0 |
- |
0.1 |
- |
|
TP304H |
0.04-0.10 |
2 |
0.045 |
0.03 |
0.75 |
18.0-20.0 |
8.0-10.5 |
- |
- |
- |
|
TP316 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
0.1 |
- |
|
TP316L |
0.03 |
2 |
0.045 |
0.03 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
0.1 |
- |
|
TP316H |
0.04-0.10 |
2 |
0.045 |
0.03 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
- |
- |
|
TP321 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
17.0-19.0 |
9.0-12.0 |
- |
0.1 |
- |
|
TP347 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
17.0-19.0 |
9.0-13.0 |
- |
- |
- |
|
TP347H |
0.04-0.10 |
2 |
0.045 |
0.03 |
0.75 |
17.0-19.0 |
9.0-13.0 |
- |
- |
- |
|
ASTM A358 Mechanical Property |
|||||
|
Grade |
Tensile Strength, min |
Yield Strength, min |
Elongation (mm) |
||
|
ksi |
Mpa |
ksi |
Mpa |
||
|
TP304 |
75 |
515 |
30 |
205 |
40 |
|
TP304L |
70 |
485 |
25 |
170 |
40 |
|
TP304H |
75 |
515 |
30 |
205 |
40 |
|
TP316 |
75 |
515 |
30 |
205 |
40 |
|
TP316L |
70 |
485 |
25 |
170 |
40 |
|
TP316H |
75 |
515 |
30 |
205 |
40 |
|
TP321 |
75 |
515 |
30 |
205 |
40 |
|
TP347 |
75 |
515 |
30 |
205 |
40 |
|
TP347H |
75 |
515 |
30 |
205 |
40 |
|
Available Dimension Range |
|||||||||||||
|
OD(mm/inch) |
|
Wall thickness (SCH) |
|||||||||||
|
10 |
20 |
30 |
STD |
40 |
60 |
XS |
80 |
100 |
120 |
140 |
160 |
XXS |
|
|
21.3 (1/2'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
26.7 (3/4'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
33.4 (1'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
42.2 (1 1/4'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
48.3 (1 1/2'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
60.3 (2'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
73 (2 1/2'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
88.9 (3'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
√ |
√ |
|
101.6 (3 1/2'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
|
|
|
|
|
114.3 (4'') |
√ |
|
√ |
√ |
√ |
|
√ |
√ |
|
√ |
|
√ |
√ |
|
141.3 (5'') |
√ |
|
|
|
√ |
|
√ |
√ |
|
√ |
|
√ |
√ |
|
168.3 (6'') |
√ |
|
|
|
√ |
√ |
√ |
√ |
|
√ |
|
√ |
√ |
|
219.1 (8'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
273 (10'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
323.8 (12'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
355.6 (14'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
406.4 (16'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
457 (18'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
508 (20'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
559 (22'') |
√ |
√ |
√ |
√ |
|
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
610 (24'') |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
|
|
√ |
|
|
660 (26'') |
√ |
√ |
|
|
|
|
√ |
|
|
|
|
|
|
|
711 (28'') |
√ |
√ |
√ |
√ |
|
|
√ |
|
|
|
|
|
|
|
762 (30'') |
√ |
√ |
√ |
√ |
|
|
√ |
|
|
|
|
|
|
|
813 (32'') |
√ |
√ |
√ |
√ |
√ |
|
√ |
|
|
|
|
|
|
|
864 (34'') |
√ |
√ |
√ |
√ |
√ |
|
√ |
|
|
|
|
|
|
|
914 (36'') |
√ |
√ |
√ |
√ |
√ |
|
√ |
|
|
|
|
|
|
