Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales
Centerway steel specializes in the production of the stainless steel pipe and fittings, and large inventory of resources, Factory direct sales

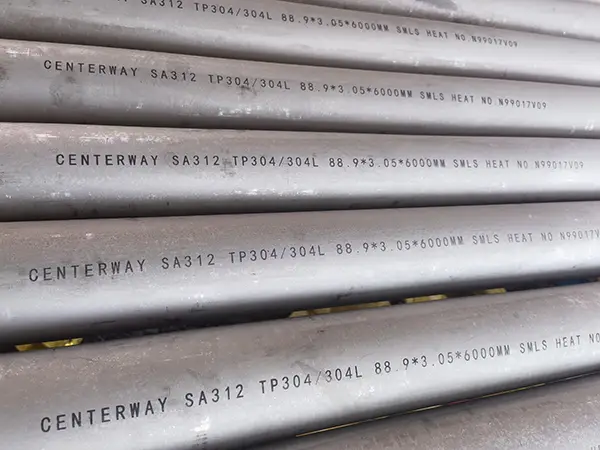

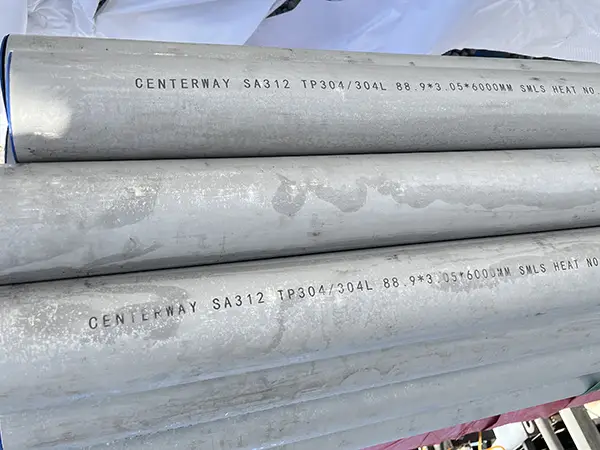

ASTM A213 TP304 Stainless Steel Seamless Tube is manufactured by seamless process used in high pressure environment, stainless steel TP304 grade is the most used material due to its high strength and excellent corrosion resistance.
Specifications - Stainless Steel 304/304L
ASTM:A312, A376,A358, A269,A249, A403, A182, A351
ASME: SA312, SA376
Pressure SA358,SA269, SA249,SA403, SA182, SA351

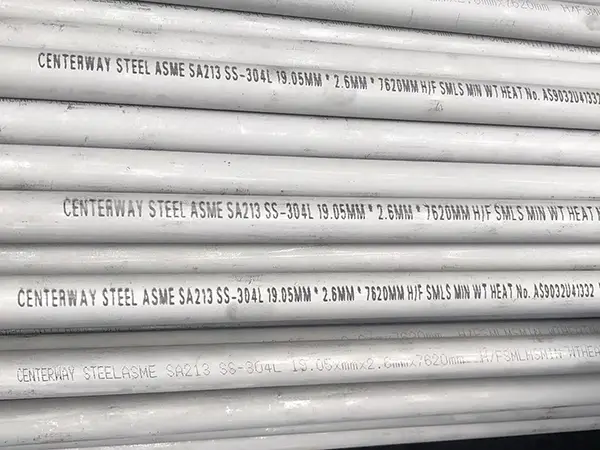

ASTM A213 / ASME SA213 is a America specification for stainless steel boiler, super heater, heat exchanger tubes, executed by most world stainless steel seamless tubes mills and factories, minimum wall thickness required in A213 seamless tube, or average wall thickness as customers requirement, tight tolerance of outside and wall thickness stated as A213 standard or A1016
Chemical Composition
|
Element |
Percentage by Weight Maximum Unless Range is Specified |
||
|
304 |
304L |
304H |
|
|
Carbon |
0.08 |
0.030 |
0.04-0.10 |
|
Manganese |
2.00 |
2.00 |
2.00 |
|
Phosphorus |
0.045 |
0.045 |
0.045 |
|
Sulfur |
0.030 |
0.030 |
0.030 |
|
Silicon |
0.75 |
0.75 |
0.75 |
|
Chromium |
18.00 |
18.00 |
18.00 |
|
Nickel |
8.0 |
8.0 |
8.0 |
|
Nitrogen |
0.10 |
0.10 |
0.10 |
In grade 304 stainless, the maximum carbon content is set at 0.08%, whereas grade 304L stainless steel has a maximum carbon content of 0.03%. The “L” in 304L can be interpreted as meaning extra-low carbon.
Mechanical Properties
|
Grade |
Tensile Strength Rm N/mm² |
Yield Strength Rp 0.2, N/mm² |
Elongation (%) |
|
304 Annealed |
500-700 |
195 |
40 |
|
304L Annealed |
460-680 |
180 |
40 |
Physical Properties
|
Data |
Metric |
English |
|
Density |
8 g/cc |
0.289 lb/in³ |
Mechanical Properties
|
Hardness, Brinell |
123 |
123 |
Converted from Rockwell B hardness. |
|
Hardness, Knoop |
138 |
138 |
Converted from Rockwell B hardness. |
|
Hardness, Rockwell B |
70 |
70 |
|
|
Hardness, Vickers |
129 |
129 |
Converted from Rockwell B hardness. |
|
Tensile Strength, Ultimate |
505 MPa |
73200 psi |
|
|
Tensile Strength, Yield |
215 MPa |
31200 psi |
at 0.2% offset |
|
Elongation at Break |
70 % |
70 % |
in 50 mm |
|
Modulus of Elasticity |
193 - 200 GPa |
28000 - 29000 ksi |
|
|
Poisson's Ratio |
0.29 |
0.29 |
|
|
Charpy Impact |
325 J |
240 ft-lb |
|
|
Shear Modulus |
86 GPa |
12500 ksi |
|
Applications
Type 304/ 304L stainless steel is very common throughout the industry, especially in food processing, because it is not susceptible to acid corrosion in common foods. Therefore, this steel is very suitable for use in sinks, work surface, preparation areas and refrigerators. It is also an ideal material for pharmaceutical industry, such as clean room.
